| MODEL |

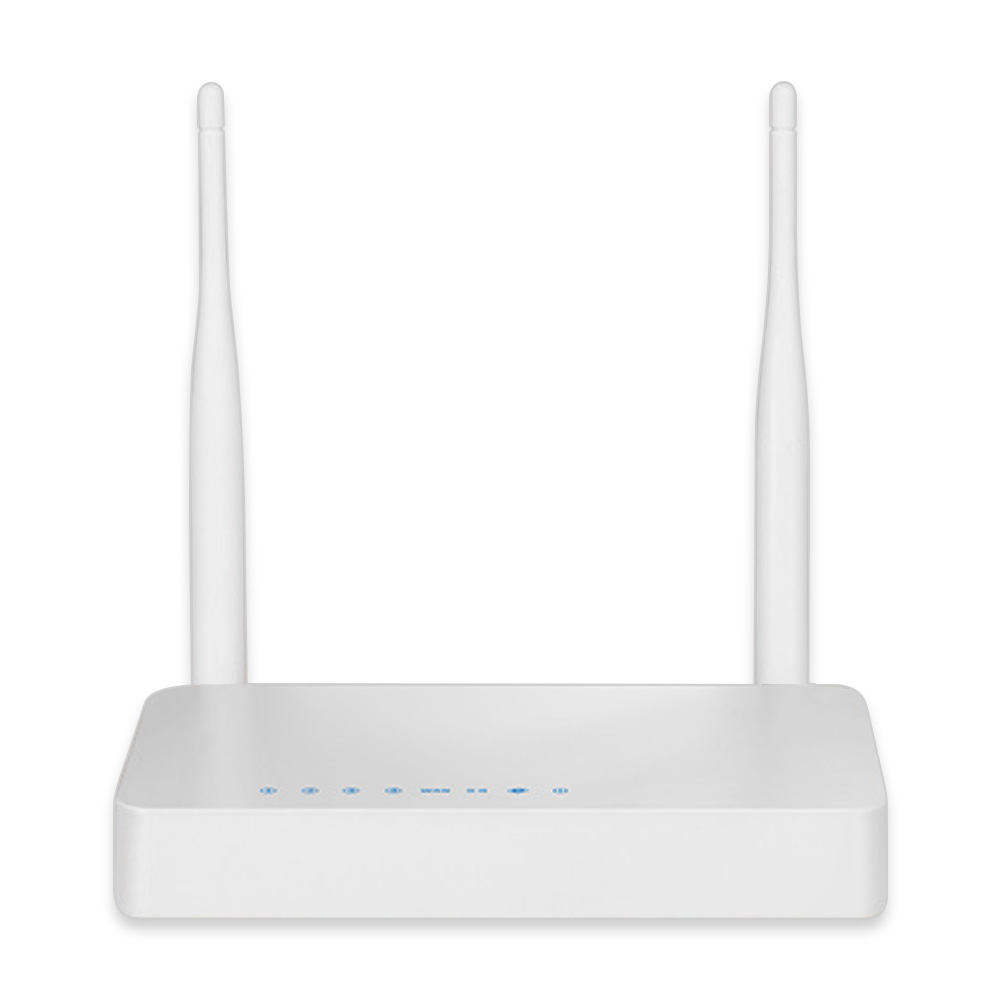

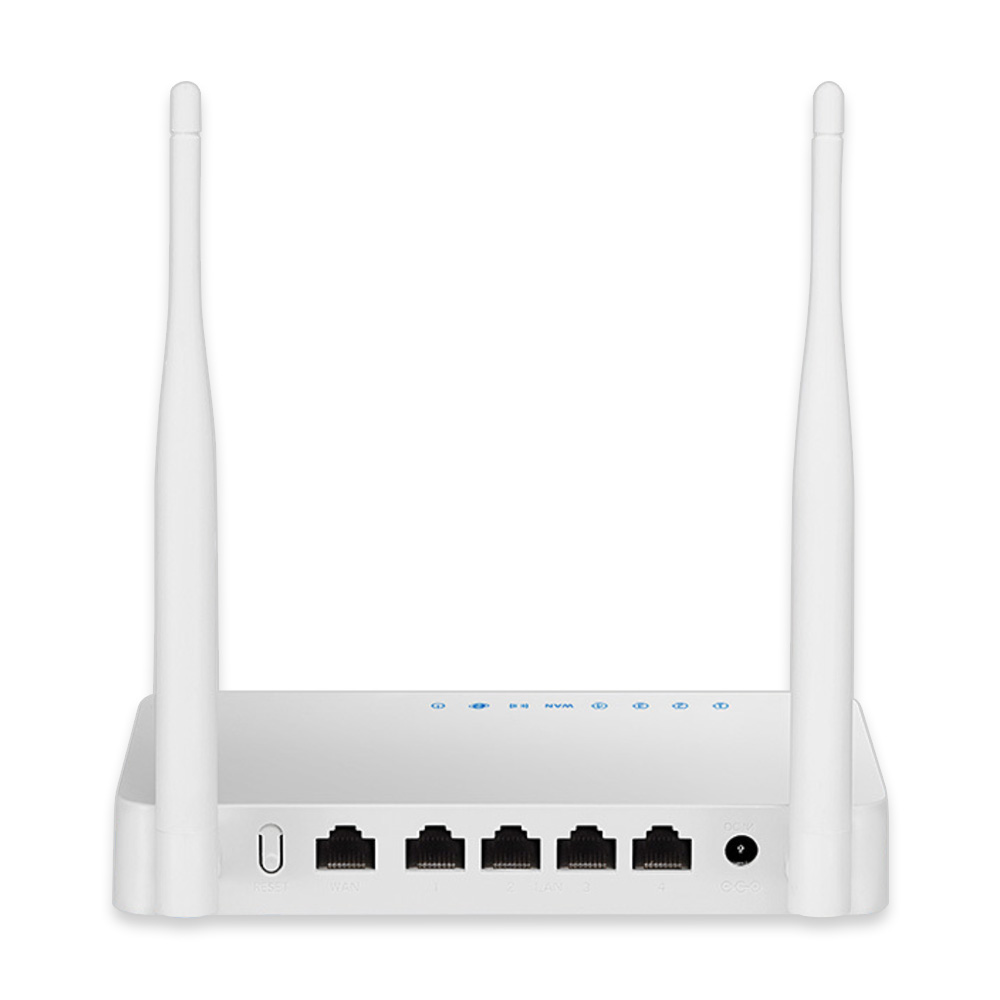

P94 4G CPE |
|
Support 4G/3G+Wi-Fi Wireless Access |
| 4G Wireless Translate Rate MAX:150Mbps |
| Can Support WIFI User: 32 Equipment |
| 4g Chipset |
ZX297520v3 or qualcomm 9x07 |
| WIFI Chipset |
MT7620N |
| Internet Types |
FDD-LTE, TDD-LTE, WCDMA/HSPA+ |
| Work Frquency |
FDD-LTE Band Band 1/3/5/8 (more bands can be added) |
| TDD-LTE Band 38/39/40/41 |
| WCDMA：Band 1/5/8 |
| TDSCDMA:B34,B39 |
| Rate |
FDD-LTE/TDD-LTE: UP 50M / DOWN 150Mbps |
| HSPA+: UP 5.76M / DOWN 21Mbps |
| TD-SCDMA: UP 2.2Mbps / DOWN 2.8Mbps |
| Support System |
Windows XP, Windows Vista, Windows 7, Windows 8/8.1 |
| MAC OS X 10.7+ |
| Ethernet |
2*lan, 1*wan |
| AC Power |
12V/1A input |
| USIM/SIM |
Standard 6 PIN SIM card interface 3V SIM card and 1.8V SIM card |
| LED |
2G/3G/4G LED、WIFI LED,WLAN/LAN LED,System LED, WPS LED |
| Power Consumtion |
INPUT POWER: 12V/1A |
| MAX Consumtion: ＜2.5W |
| WiFi Standard |
Protocol：802.11b/g/n, MAX: 300Mbps |
| WiFi Frquency |
2400MHz-2483.5MHz |
| MINO FOR WIFI |
5dbi X 2 |
| DDR/SPI |
64MBytes/8MBytes |
| WiFi Safe Mode |
Open, WPA-PSK, WPA2-PSK |
| Work Temperature |
0 to 55°C |
| Working Humidity |
10%-90% RH |
| Storage Temperature |
-40 to 85°C |
| SIZE |
150*150*60MM |
